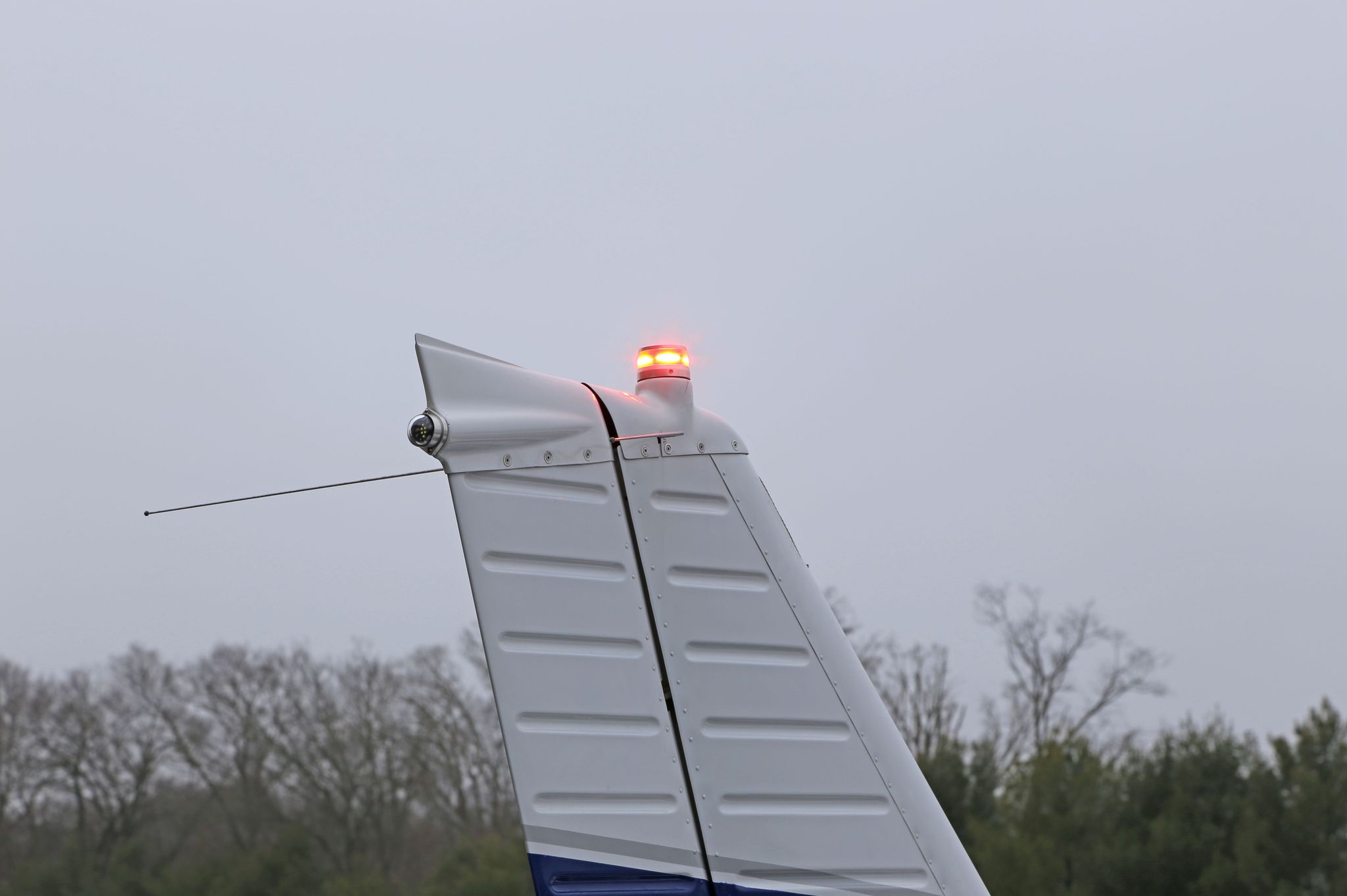

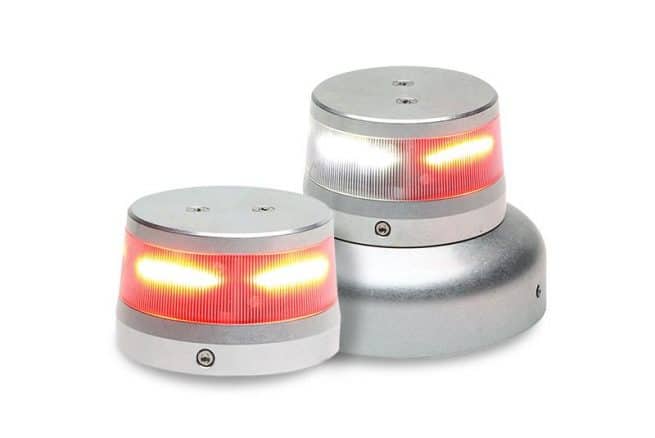

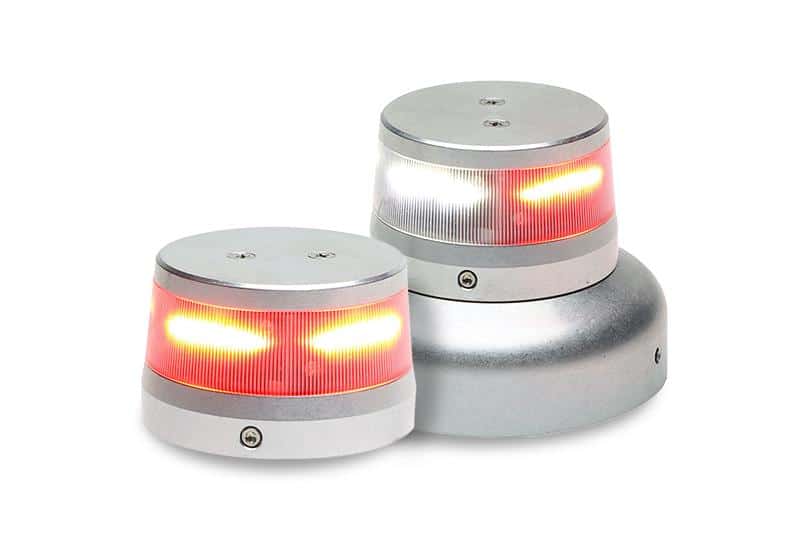

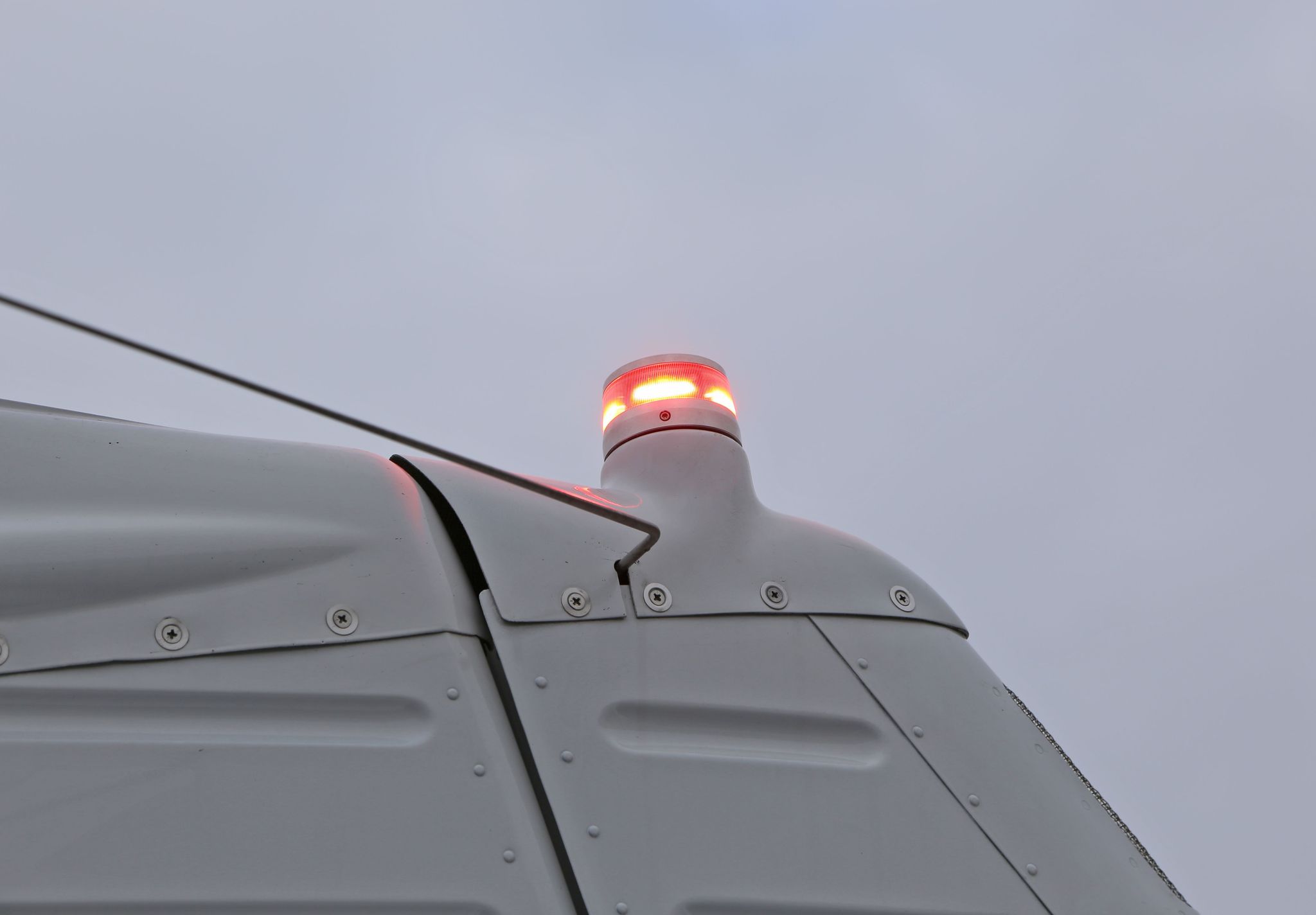

ORION 360 Beacons are the 4th Generation LED beacons for fixed-wing aircraft. These are designed to replace legacy 2.6″ and 3.75″ round beacons. ORION 360 beacons are lower profile than legacy product by 60%.
- Drawing: 72010
- Current: 0.53 AMPS average @14VDC 0.26 AMPS average @28VDC
- Weight: 0.30 lbs (Narrow Base) 0.37 lbs (Wide Base)
- Lens: 68-1972008A30
- Dimensions: 2.60″L X 2.6″W X 1.60″H (Narrow Base) 3.67″L X 3.67″ W X 2.83″ H (Wide Base)
